A newly released teardown of the Oppo Find X9 Ultra has revealed key insights into its internal engineering, showcasing how the device is built for high performance and advanced photography. The detailed breakdown highlights a compact yet sophisticated layout that prioritizes both imaging capabilities and thermal efficiency.
The teardown demonstrates that the Oppo Find X9 Ultra features a complex multi-layer motherboard design, allowing components to be stacked efficiently. This structure not only optimizes space but also improves heat dissipation by positioning critical elements closer to cooling systems. Key hardware includes LPDDR5X RAM, UFS 4.1 storage, and the powerful Snapdragon 8 Elite Gen 5 processor.

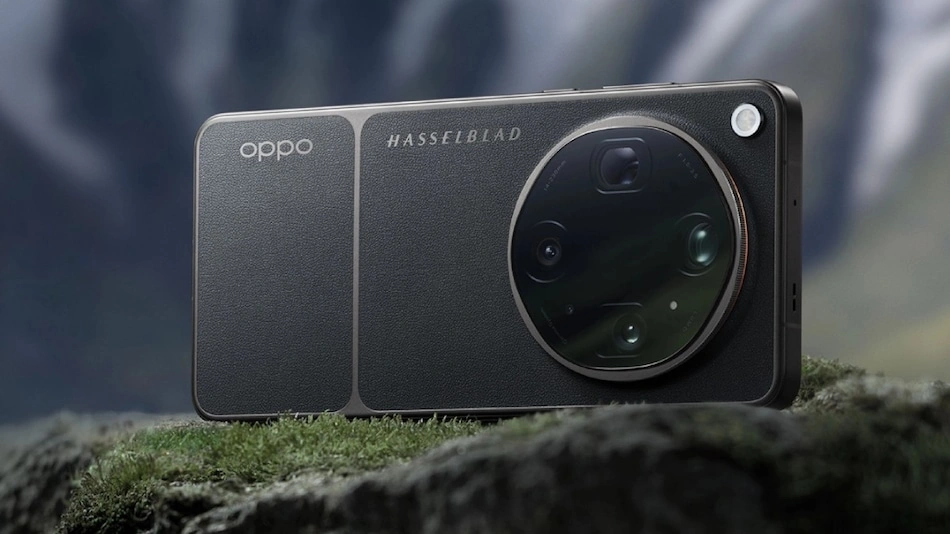

One of the standout aspects of the device is its camera system. The circular module houses a quad-camera setup backed by Hasselblad, including large sensors, periscope zoom lenses with 3x and 10x capabilities, and an enhanced ultra-wide lens. A specialized secondary lens is also included to improve color accuracy and image processing.
To manage heat during intensive usage, the phone incorporates a large vapor chamber along with graphite layers and phase-change materials. These elements work together to regulate temperature spikes and maintain stable performance. Additional thermal films extend across various components to ensure even heat distribution.
The Oppo Find X9 Ultra is powered by a massive 7050mAh silicon-carbon battery featuring a dual-connector design for improved efficiency. It supports both wired and wireless charging, with a centrally placed charging coil for better balance. The USB Type-C port is reinforced with protective materials to enhance durability.
Audio performance is enhanced with symmetrical speakers positioned at both ends of the device, delivering balanced sound output. The phone also includes multiple microphones, advanced sensors, and durability features such as waterproof membranes and protective seals. With IP66 IP68 and IP69 ratings, the device is built to withstand dust water immersion and high-pressure conditions.
Overall, the teardown reveals a carefully engineered smartphone designed to deliver premium performance, advanced photography, and long-term reliability.
